XO
XO
Conceptual two-panel arrangement
CUSTOM SLIDING OPENING

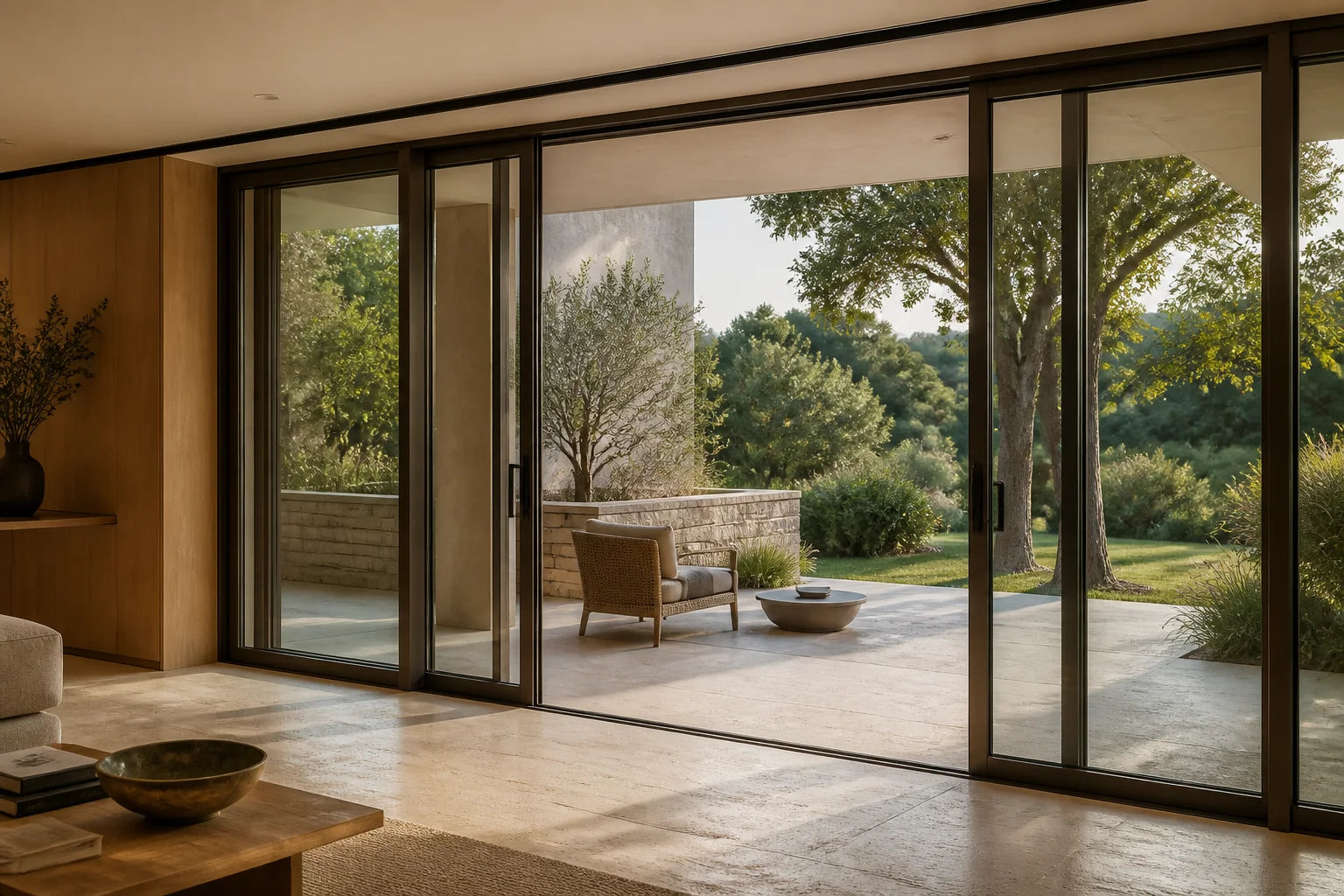

Custom Aluminum Sliding Doors
Plan panel layouts, usable clear opening, sill conditions, glass, finish, hardware and delivery around your project opening.
Best forWide openings · Indoor-outdoor living
Start withOpening size · Panel direction · Floor condition
DeliverySupply only · Job-site delivery
CONFIGURE THE SYSTEM
Build the panel layout, then select the system
OX
OX
Reverse conceptual arrangement
OXXO
OXXO
Conceptual center-opening arrangement
XXX
Multi-panel
Panel count, tracks and stacking are reviewed together
Diagram key: O indicates a fixed panel and X indicates an operating panel in these planning diagrams. Final handing and availability are confirmed for the selected catalog system.
Panel diagrams communicate planning logic only. Configuration availability, panel count and track design are confirmed for the selected system.
Start with the panel layout
Plan how the opening moves, stacks and drains.
The supplied catalog covers multiple aluminum sliding systems, slim-frame applications, glass, finish and hardware references. Final selection depends on the opening and project conditions.
Two- and multi-panel arrangements
Review sliding direction, fixed panels, meeting conditions and the usable clear opening.
Sill and drainage
Coordinate the track, support, waterproofing and finished-floor transition before construction.
Large-panel access
Panel size affects crating, unloading, site access and the lifting plan.
Documented exterior sliding systems
Compare the catalog series before technical review.
120 Series120 mm · powder coating or PVDF · 5 + 12A + 5 mm insulated tempered glass shown
190 Series190 mm · powder coating or PVDF · 5 + 12A + 5 mm insulated tempered glass shown
132 / 202 Series132 / 202 mm · powder coating or PVDF · 5 + 12A + 5 mm insulated tempered glass shown

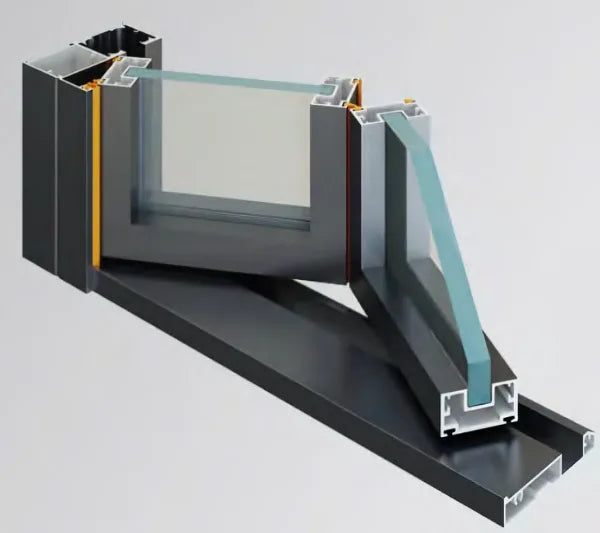

Profile referencesThermal-break and non-thermal-break catalog options; aluminum thickness varies by listed series

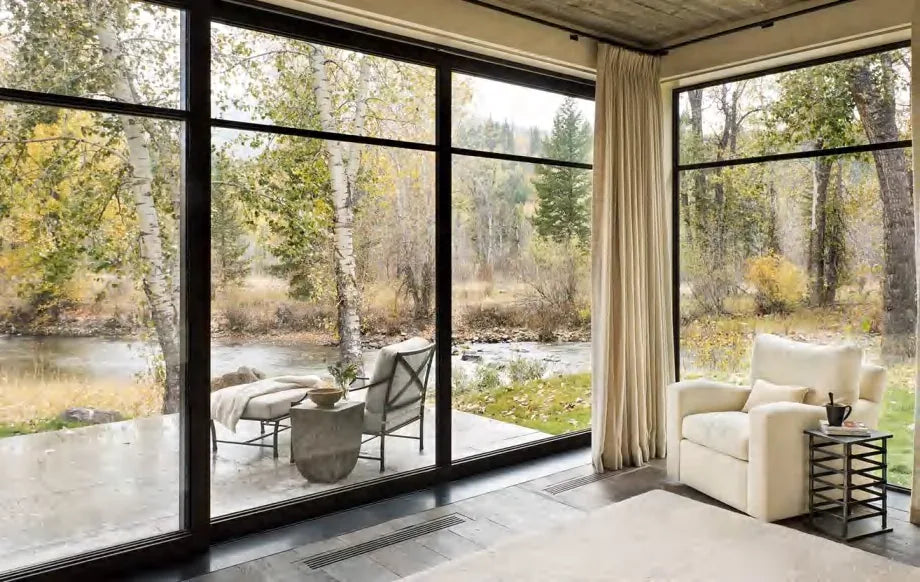

Separate slim system
16 Series Slim Sliding Door
The 16 mm catalog line is kept separate from the exterior 120/190/132/202 Series. Its documented examples include powder coating, 2.0 mm aluminum and its own single, insulated and laminated glass options.
Plan the sliding opening
What we need for a useful first estimate
Opening & direction
Rough width × height, preferred sliding direction and desired clear opening.
Floor condition
Interior/exterior levels, finish build-up, drainage context and support condition.
Site access
Project ZIP, delivery access, unloading limitations and route to the opening.
Project questions
Answers before you submit a project
What determines the panel layout?
Opening size, desired clear opening, sliding direction, fixed-panel locations and stacking conditions determine the initial arrangement.
Why review the sill early?
The track, structural support, waterproofing, drainage and finished-floor transition affect both detailing and installation.
How is the panel size confirmed?
Panel size, weight, glass and performance requirements are confirmed for the selected sliding system and project conditions.
How the review works
From rough information to a production-ready package
Share project inputs
Plans, rough dimensions, photos and the decisions you already know.
Resolve the system
We review configuration, materials, interfaces and missing decisions.
Receive project pricing
The proposal is developed around the reviewed scope and delivery location.
Approve before production
Final field information and drawings control the manufactured order.
Plan Your Sliding Door System
Send the rough opening, preferred panel direction, floor condition and delivery ZIP for a project-specific estimate.
